Vacuum Components

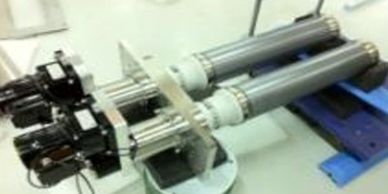

Rotating Cylindrical Cathode

  • Target Length:300~2000 mm
  • Back tube diameter:OD 133 mm
  • Back tube thickness:4 mm
  • Target Thickness:6~12 mm
  • Target utilization:Ceramic target >70% ;Metal target >80%
  • Uniformity:±5%
  • Target rotation speed:3~15rpm
  • Reliability operation test:5 million times~10 million times

Single-arm rotary cylindrical cathodes

  • Target Length:300~3000 mm
  • Back tube diameter:OD 170 mm
  • Back tube thickness:9 mm
  • Target Thickness:6~12 mm
  • Target utilization:Ceramic target >70% ;Metal target >80%
  • Uniformity:±5%
  • Target rotation speed:3~15rpm
  • Reliability operation test:5 million times~10 million times

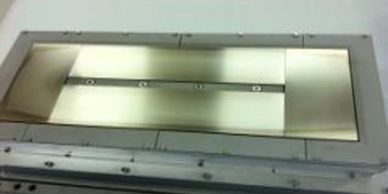

DC Plane Cathode

DC Plane Cathode

  • Rated power:≦ DC100 KW
  • Voltage/Current:≦ 1000V/225A
  • Target Length ≦ 2000mm
  • Leak rate:<1*10-9 bar*l/s
  • Target utilization:≦ 40%
  • Uniformity:±3%

MF Plane Cathode

Moving magnetic cathode

DC Plane Cathode

  • Rated power:≦ AC 80 KHz
  • Voltage/Current:≦ 1000 V/225A
  • Target Length ≦ 2000 mm
  • Leak rate:< 1*10-9 bar*l/s
  • Target utilization:≦ 30%
  • Uniformity:±3%

Moving magnetic cathode

Moving magnetic cathode

Moving magnetic cathode

  • Rated power:≦ DC 100 KW
  • Voltage/Current:≦ 1000 V/225 A
  • Target Length ≦ 2000 mm
  • Leak rate:<1*10-8 bar*l/s
  • Target utilization:≦ 40%
  • Uniformity:±3%

Ion source

Moving magnetic cathode

Moving magnetic cathode

  • Leak rate:<1.2*10-9 bar*l/s
  • Operating temperature:< 200 degrees C
  • Gases process: Ar、O2、Ar+O2
  • Maximum operating pressure :~2 mtorr
  • Nominal Gas Flow:20– 200 sccm
  • Uniform magnetic field design

Infrared heater

  • Infrared heating temperature up to 1200 degrees C
  • Temperature control accuracy within 5 degrees C

Resistance wire heater

  • Multi-disc independent control to ensure uniform temperature in the whole area
  • Infrared heating temperature up to 800 degrees C
  • Immediate feedback PID control accuracy ± 1.5 degrees C

Horizontal gate valve

  • Opening size: customized
  • Actuation time: within 2 seconds
  • Body material: 304 stainless steel
  • Valve plate: 6061-T6 aluminum
  • Leakage rate: <1*10-9 bar*l/s
  • Cap/gate/shaft seal: Viton

Vertical single chamber gate valve

  • Opening size: customized
  • Actuation time: within 2 seconds
  • Body material: 304 stainless steel
  • Valve plate: 6061-T6 aluminum
  • Leakage rate: <1*10-9 bar*l/s
  • Cap/gate/shaft seal: Viton

Vertical double chamber gate valve

  •  Opening size: customized
  • Actuation time: within 2 seconds
  • Body material: 304 stainless steel
  • Valve plate: 6061-T6 aluminum
  • Leakage rate: <1*10-9 bar*l/s
  • Cap/gate/shaft seal: Viton。

Carrier

  • The pick-and-place mechanism does not need to use shrapnel to clamp.
  • No need to make a dedicated sub carrier
  • A variety of carrier size designs allow the coating of 27"~44" substrates.
  • CRS is equipped with multi-axis ROBOT, and the loading and unloading is fast and stable.
  • Nozzle suction piece is non-contact type

。
